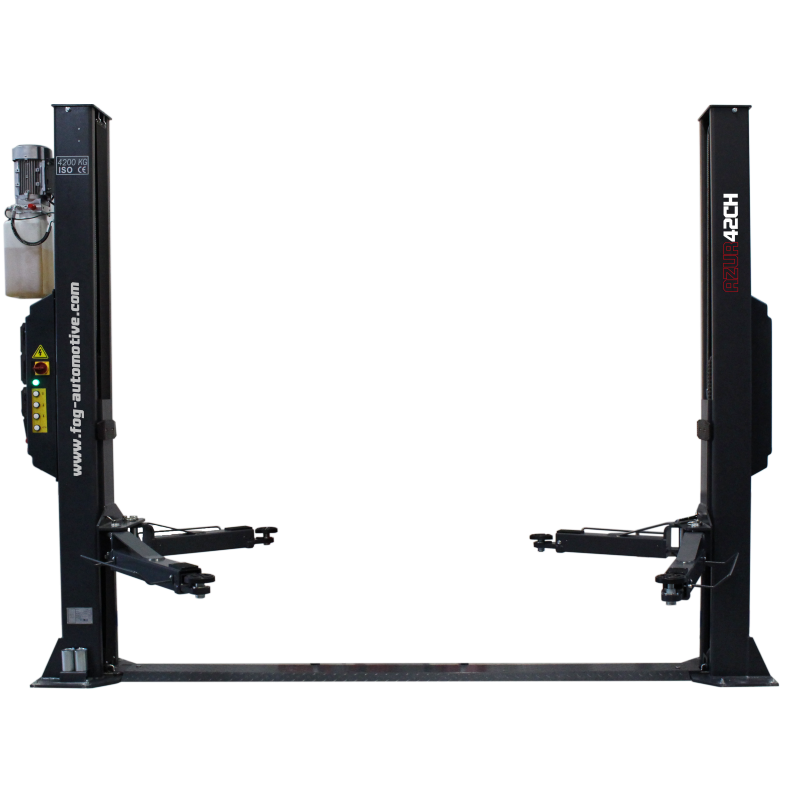

AZUR 4.2T - Hydraulic lift with base frame

TECHNICAL CHARACTERISTICS

• Cable synchronization

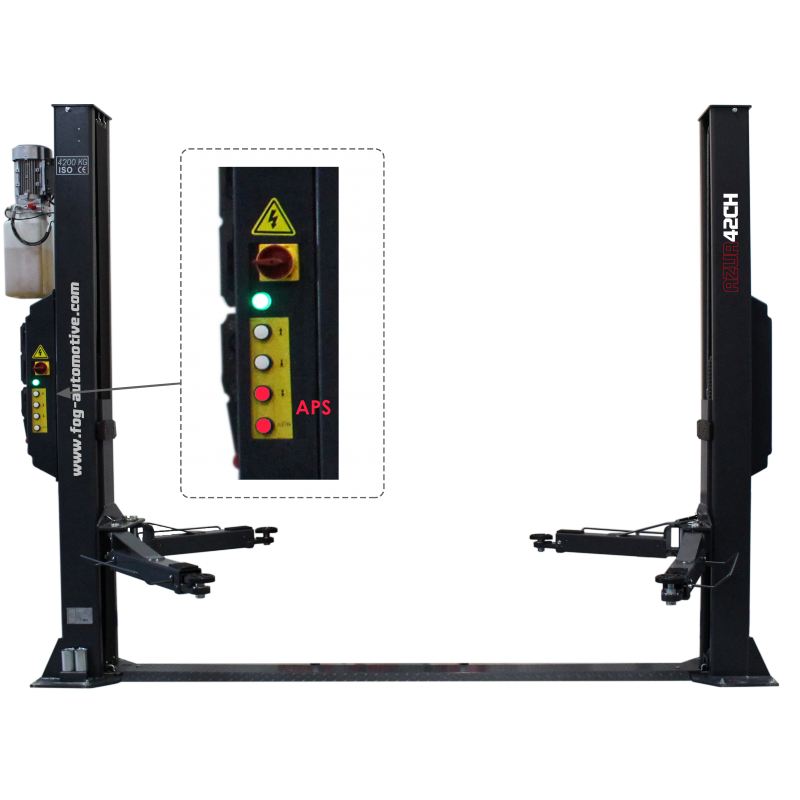

• APS direct descent system (without lift truck)
• Delivered with a set of 100 mm extensions
• Lifting capacity: 4 200 kg
• Min. lifting height for ultra-low vehicle: 90 - 160 mm

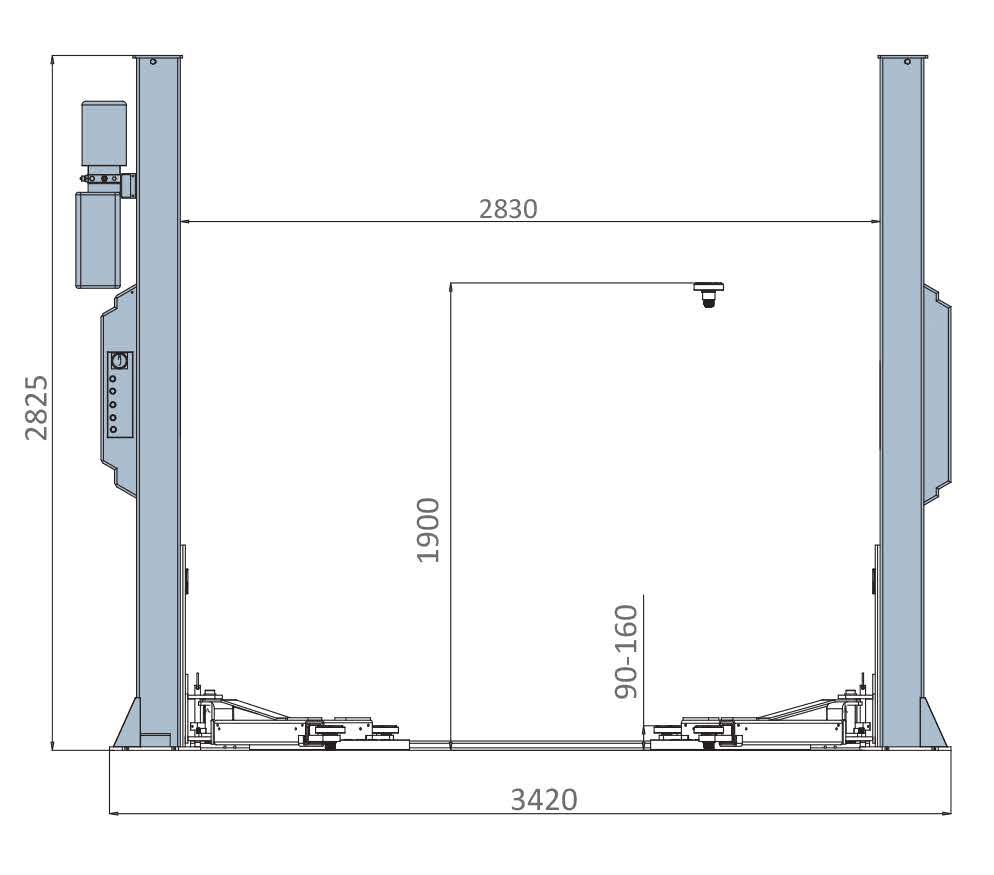

• Great width between columns: 2 840 mm
• Max. lifting height: 1 900 mm

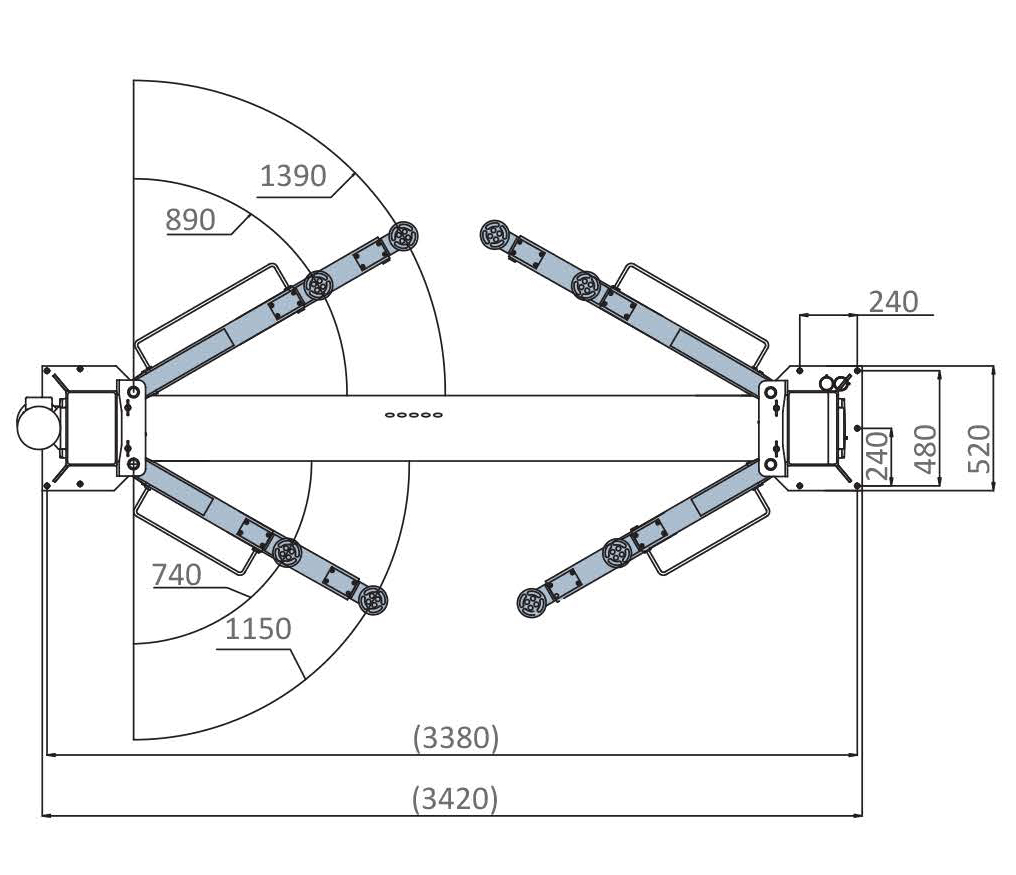

• Asymmetrical arms with 2 extensions:
  - short arms: 740 - 1 150 mm
  -long arms: 890 - 1 390 mm
• Loaded lift lifting/lowering time: 45 / 55 secs
• Height of the lift: 2 825 mm
• Width of the lift: 3 420 mm
• Minimum thickness of the slab: 200 mm
  (Possibility to install the lift on a slab of 130 mm thick by ordering the chassis kit Ref. CHASS130)
