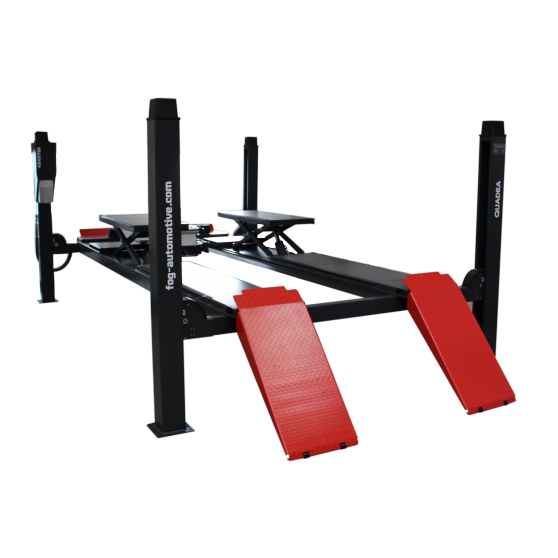

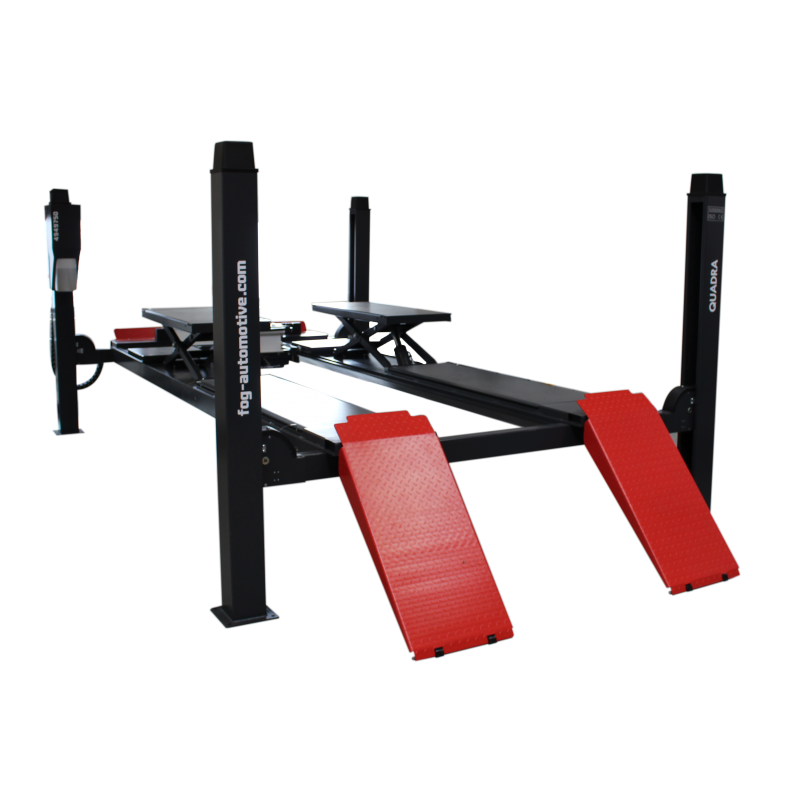

QUADRA 5T - For wheel alignment with auxiliary lift and 4.80 m tracks
QUADRA548LA
Passenger Car Light Duty Vehicle
4 electro-hydraulic post lift (capacity 5T) with an auxiliary lift table special for wheel alignment and 4.8m tracks
Other lifts with an auxiliary lift table special for wheel alignment
Standard equipment
Download
More info
TECHNICAL CHARACTERISTICS - MAIN LIFT
- Front housing for mechanical turntables.
- Rear lateral deviation plates.
- No electronic card.
- Lifting capacity: 5 000 kg
- Max. lifting height: 1 850 mm
- Tracks width: 630 mm
- Tracks length: 4 880 mm
- Total length on the floor: 5 970 mm
- Loaded lift lifting/lowering time: 45 / 60 secs
- Aligner front housing length: 970 mm
(front housing cover included)
TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE
- Lifting capacity: 4 000 kg
- Loaded lift lifting/lowering time: 25 / 20 secs
- Max. height - auxiliary lift: 425 mm
- Platform dimensions of the auxiliary lift table: (1 500-2 000) x 630 mm
Technical sheet
Side view
Top view
Data sheet
| Weight | 2 160 kg |
| Power supply | 400 V 3ph / 50 Hz / 5 A |
| Power | 2.2 kW |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Hydraulic pressure | 180 bars |
| Main lift capacity | 5 000 kg |
| Auxiliary lift capacity | 4 000 kg |
| Lifting/lowering time | Main lift: 45 / 60 secs / Auxiliary lift table: 25 / 20 secs |
| Auxiliary lift | With |
| Aligner front housing | With |
