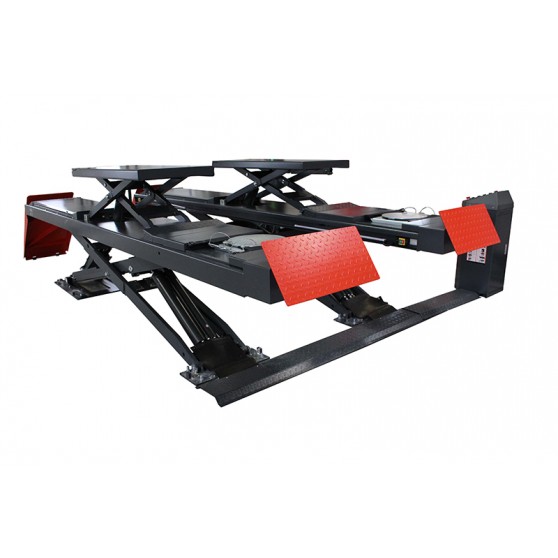

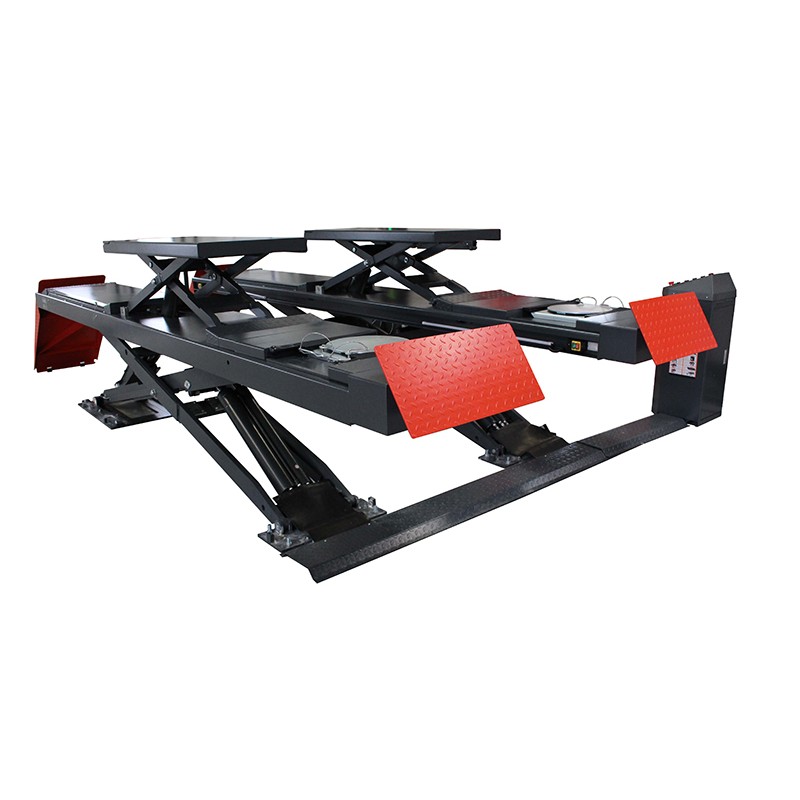

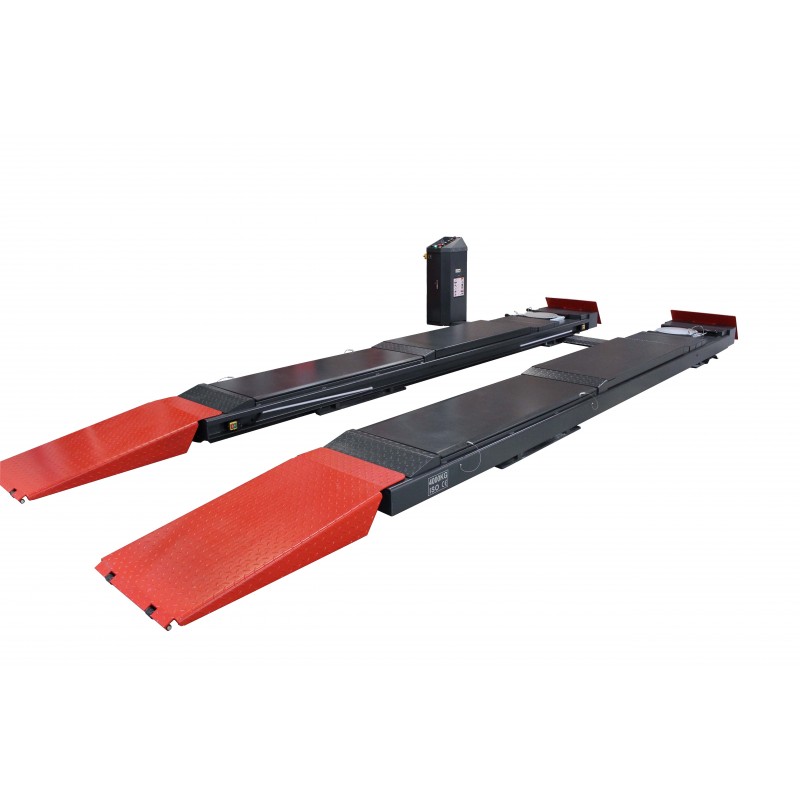

GALAXY 4T extra-low profile, 4.80 m tracks, surfaced-mounted version
GALAXIE448PLA
Passenger Car Light Duty Vehicle
GALAXIE 4T big scissors lift - with auxiliary lift table and and 4.80 m tracks - surfaced-mounted version
Other references GALAXIExxxLA with auxiliary lift table
BIG SCIS 5T RECESSED-MTD 5.10 M TRK
Other available references
BIG SCISSORS 4.5T - WHEEL ALIGN.
BIG SCISSORS 5T - FLAT TRK AUX LIFT
More info
TECHNICAL CHARACTERISTICS - MAIN LIFT
- Ideal for wheel alignement.
- Excellent clearance around and under the vehicle.
- Tracks with hydraulic synchronization without connection shaft for practical access to accessories such as oil collectors and support jacks.
- « Deadman’s Handle » type of control.
- Capacity of the main lift: 4 000 kg
- Min. height of tracks: 180 mm
- Tracks width: 660 mm
- Tracks length: 4 800 mm
- Max. lifting height of the main lift: 1 900 mm
- Loaded main lift lifting/lowering time: 60 / 55 secs
TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE
- Capacity of the auxiliary lift table: 4 000 kg
- Max. lifting height of the auxiliary lift table: 450 mm
- Platforms length of the auxiliary lift table: 1 445-1 950 mm
Technical sheet

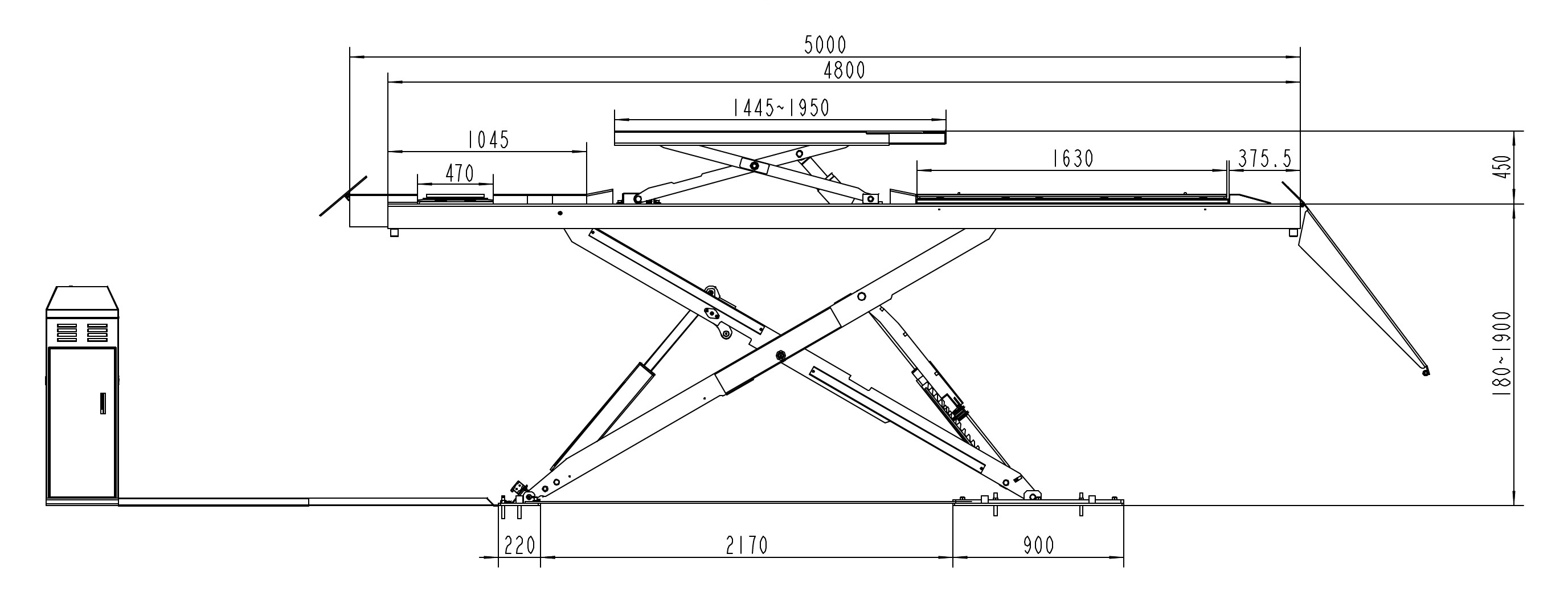

Side view

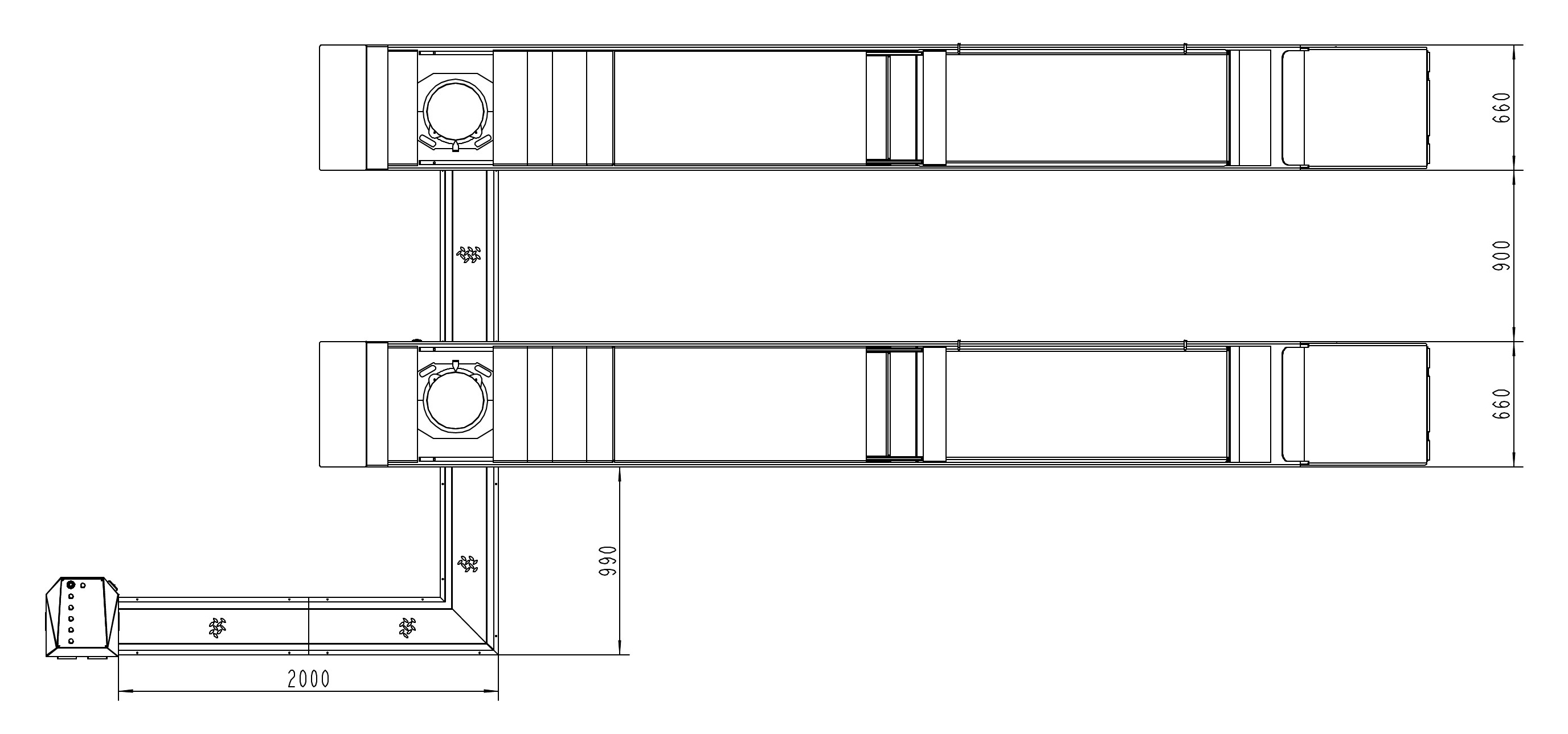

Top view
Data sheet
| Weight | 3 020 kg |
| Power supply | 400 V 3 ph / 50 Hz / 9 A |
| Power | 3.5 kW |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Operating pressure | 6-8 bars |
| Hydraulic pressure | Main lift: 230 bars / Auxiliary lift: 200 bars |
| Main lift capacity | 4000 kg |
| Auxiliary lift capacity | 4000 kg |
| Lifting/lowering time | 60/55 secs |
| Installation type | Surfaced-mounted |
| Auxiliary lift | With |
