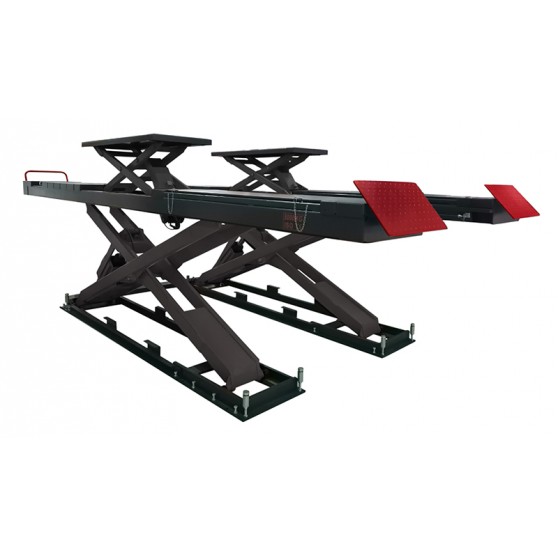

GALAXIE 5T auxiliary lift, 5.10 m tracks, recessed-mounted version
GALAXIE551ELA
Passenger Car Light Duty Vehicle
GALAXIE 5T big scissors lift - with auxiliary lift table and and 5.10 m tracks - recessed-mounted version
Other references GALAXIExxxLA with auxiliary lift table
BIG SCIS 4T SURFACED-MTD 4.80 M TRK
Other available references
BIG SCISSORS 4.5T - WHEEL ALIGN.
BIG SCISSORS 5T - FLAT TRK AUX LIFT
More info
TECHNICAL CHARACTERISTICS - MAIN LIFT
- Ideal for wheel alignement.
- Excellent clearance around and under the vehicle.
- Tracks with hydraulic synchronization without connection shaft for practical access to accessories such as oil collectors and support jacks.
- « Deadman’s Handle » type of control.
- Capacity of the main lift: 5 000 kg
- Min. height of tracks: 360 mm
- Tracks width: 610 mm
- Tracks length: 5 100 mm
- Max. lifting height of the main lift: 2 060 mm
- Loaded main lift lifting/lowering time: 70 / 50 secs
TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE
- Capacity of the auxiliary lift table: 3 500 kg
- Max. lifting height of the auxiliary lift table: 450 mm
- Platforms length of the auxiliary lift table: 1 400-2 000 mm
Technical sheet
Side view
Top view
Data sheet
| Weight | 2 358 kg |
| Power supply | 400 V 3 ph / 50 Hz / 5 A |
| Power | 2.2 kW |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Operating pressure | 6-8 bars |
| Hydraulic pressure | Main lift: 250 bars / Auxiliary lift: 200 bars |
| Main lift capacity | 5 000 kg |
| Auxiliary lift capacity | 3 500 kg |
| Lifting/lowering time | 70/50 secs |
| Installation type | Recessed-mounted |
| Auxiliary lift | With |
