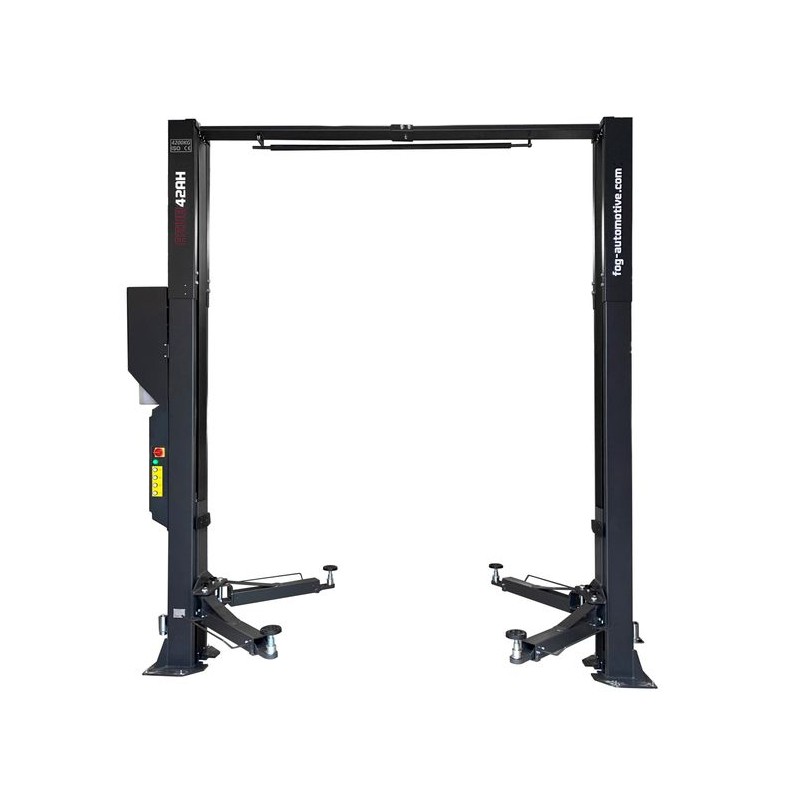

AZUR 3.5T - Hydraulic lift with base frame
AZUR42AH
Passenger Car Light Duty Vehicle
Hydraulic 2 post lift without base frame (capacity 4.2T)
Other hydraulic lift references
2 POST LIFT WITH BASE FRAME - 4.2T
2 POST LIFT WITH BASE FRAME - 5T
2 POST LIFT WITHOUT BASE FRAME - 8T
Other 2 post lifts
Standard equipment
- 4 extensions of 100 mm
Optional equipment
Set of wheel adaptors comprising 4x forks and 2x long arms
Download
More info

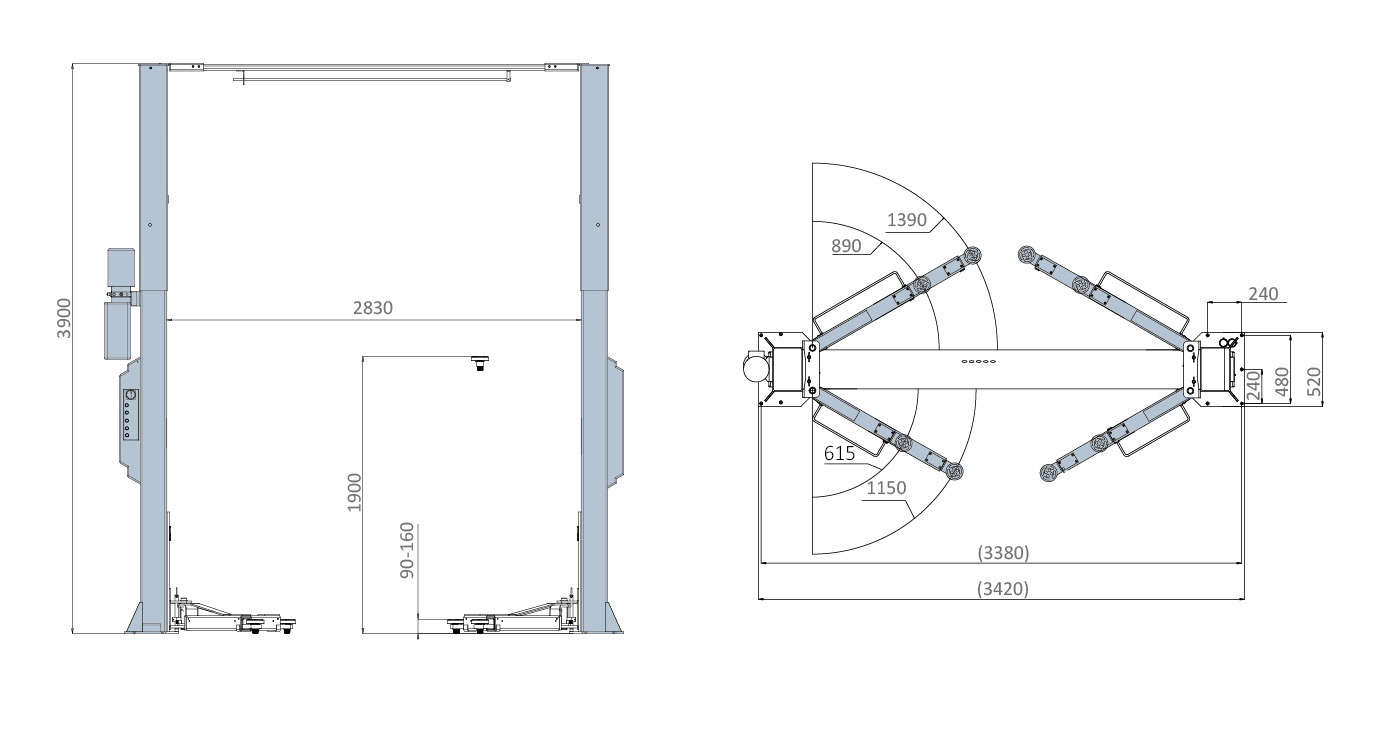

TECHNICAL CHARACTERISTICS
- Cable synchronization
- Perfectly flat floor between the two columns
- APS direct descent system (without lift truck)
- Lifting capacity: 4 200 kg
- Min. lifting height for ultra-low vehicle: 90 - 160 mm
- Great width between columns: 2 830 mm
- Max. lifting height: 1 900 mm
- Asymmetrical arms with 2 extensions:
- short arms: 615 - 1 150 mm
-long arms: 890 - 1 390 mm - Loaded lift lifting/lowering time: 55 / 55 secs
- Height of the lift: 3 900 mm
- Width of the lift: 3 420 mm
- Minimum thickness of the slab: 200 mm
Technical sheet
Data sheet
| Weight | 630 kg |
| Power supply | 400 V 3ph / 50 Hz / 5A |
| Power | 2.2 kW |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Lifting capacity | 3500 kg |
| Lifting/lowering time | 45 / 55 secs |
| Installation type | With base frame |
